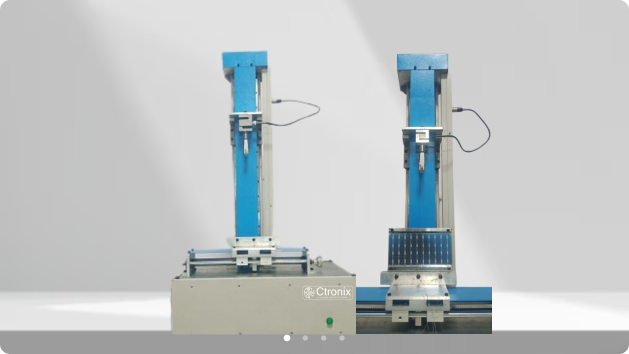

Single channel solar Cell Peel Tester - cx105
Single channel Peel tester customized for Solar Cell Peel Strength Test. Fully automatic testing system with high precision control and accuracy, includes automated computer control of test methods giving simplicity of operation.
Salient features
- Rigid Test Rig ensuring flutter free Peel
- Efficient Fixture to hold Sample during peel.
- Preset Tests (10 BB to 24BB half cut) with auto set up of sample / peel length for tests
- Customized reporting including Min/Max Avg Peel Strength for each channel and lot testing
- 5 different tests including Bus Bar testing.
- High Resolution 0.01 N/ 0.2mm
- Superimposed graph for across channel data
- Sample Length : Up to 240mm (24BB , 1/2 Cut)
- Peel Length : Up to 450 mM
- Max Force & Resolution: 100 N @ 0.01 N
- Peel Speed: 50 mM / Min
- Peel Resolution : 0.2 mM

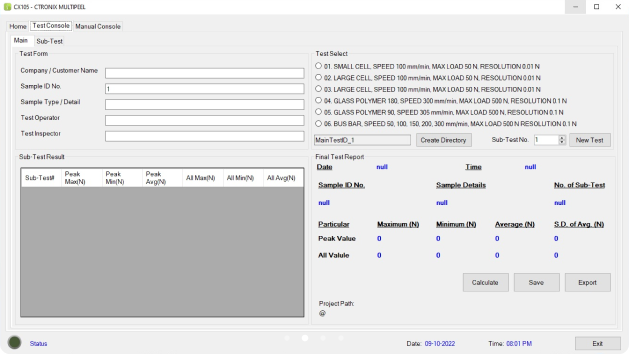

Easy to use propriety software enabling end to end testing via the Host PC with unique features of :
a) Pre Set Tests for Solar Cell type
B) Auto Set up of Sample/Peel Length
c) Real time Force v/s Peel Length
d) Custom Reporting
B) Auto Set up of Sample/Peel Length
c) Real time Force v/s Peel Length
d) Custom Reporting
The Software controls the Set up and Peel as described below.
Set up of Test Bed:
Based on Type of Solar Cell selected system automatically moves the jaw to Sample Length
Sample Peel:
Once Bus bars are connected to the jaw system starts peeling and Peel length is auto set based on Solar Cell. Real Time Graph is available in the software.
Completely automatic operation from the host PC and extensive reporting capability.
Operations:
- Auto Sample / Peel Length set up as per Solar Cell type
- Auto Tightning jaws and custom Jigs ensure steady pell of the Bus bar

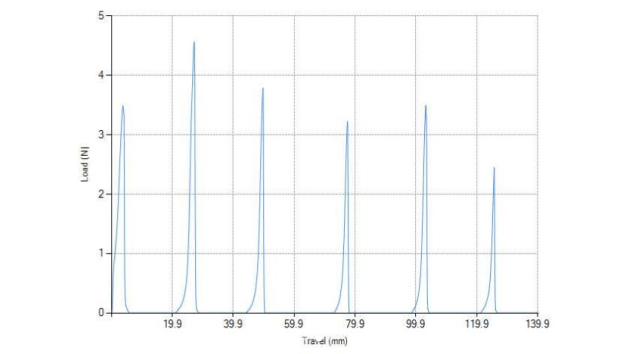

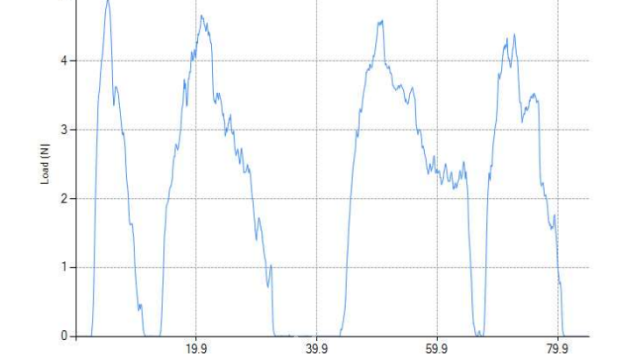

- Real time graphs of Peel strength v/s Peel Length
- Auto stop at Peel length (based on solar cell type)
Reporting:
Customized reporting capabilities with detailed and summary view for each channel and consolidated across channel.
- Min, Max , Average values of Peel Strength per channel
- Unique auto peak value reading in graph
- Lot Testing to facilitate Single Channel , Multi Peel tests
- Min, Max , Average values of Peel Strength across tests in Lot Testing
