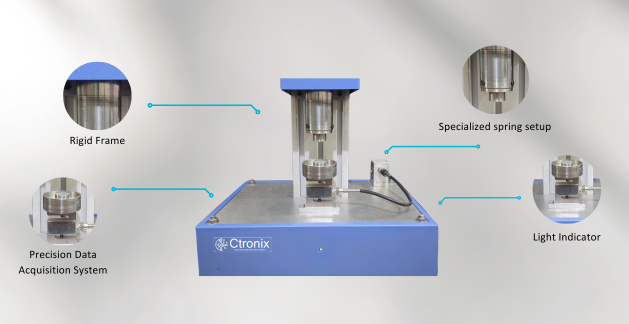

Crushing Strength Tester
The PC based Crushing strength tester is custom designed for your samples as per ATSM. Our Crushing Strength testers are fully automatic with unique features such as a) Real Time Graph, b) Multiple tests reports (Lot Tests) / Individual tests and c) Customizable reporting. The test reports can be customized as per your requirement and provide the min/max Force, SD for Lot Testing
Salient features
- Fully automatic PC based tester
- High accuracy +/- 1% FSD
- NABL certified load cell
- Auto return to sample length
- Customized models as per ASTM
- Custom Reporting including Mix. Max. Average of each Axis
- 0.1 N / 1 N Resolution
- Jaw travel : 1 to 30 mm Max
- Speed of travel : 15 mm / min
- Length of sample : 0.5 to 20 mm Max (Max)
- Max dia of sample : 1 to 10 mm
- Max load : 2 KN Max
- Resolution (Force) : 1 N / 0.1 N Upto 1000 N
- Resolution (Displacement) : 0.1 mm
- Accuracy : +/- 1% FSD
A flexible and intuitive software package to suit all types of crushing strength testing, automated storage of all test data, ease of export to pdf for reporting.
Experience seamless efficiency with our Completely Automatic setup, revolutionizing crushing strength testing operations with unparalleled precision.
Experience seamless efficiency with our Completely Automatic setup, revolutionizing crushing strength testing operations with unparalleled precision.
Operations:
- Select the test to be conducted.
- The Test Rig moves the jaw upward so that the operator can place the sample.
- The system automatically starts stressing the sample at Constant Rate of Compression.
- The Test Rig moves the jaws horizontally in X and Y direction.at Constant Rate of Extension.
- In the software window a “Real time” graph is displayed highlighting the force and Time.
- On Detection of compressive failure.
Reporting:
Report for a single test run comprises of:
- Date, Time, Sample No. and Sample ID
- Source or material
- Force v/s Time graph
- Force at crush
Ctronix PC Based Bi-Axial Tester Demo Video
