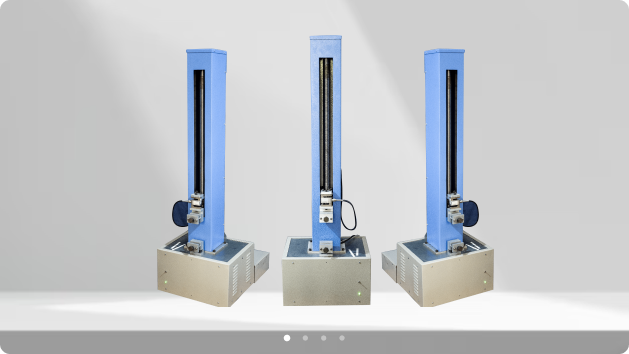

Ctronix Tensile Tester - cx101
Single channel Tensile tester customized for thin Plastic Sheet/ Steel Wire / Rubber Cathder conforming to ASTM .Fully automatic PC based system with high precision control and accuracy, includes PC based control giving simplicity of operation.
Salient features
- Rigid Test Rig ensuring flutter free Peel
- Efficient Fixture to hold Sample during peel.
- Preset Tests with auto set up of sample Length / speed of Extension (Constant Rate of Extension) for tests
- Customized reporting including Min/Max Avg Strength for each run along with lot testing
- Different tests as per Sepcs
- High Resolution 0.01 N up-to 1KN
- Real Time graph for Force v/s Elongation
- Sample Length : 50/100 mM
- Jaw Travel : 500 mM
- Speed : 50/100/200/300 MM/ min
- Max Load : 2.5 KN max
- Resolution (Travel) : 0.2 MM
- Resolution (Force) : 0.1 N (0.01 @ 1KN)
- Accuracy : +/- 1% FSD
Easy to use propriety software enabling end to end testing via the Host PC with unique features of :
a) Pre Test Setup
B) Auto Stop and auto return
c) Custom Reporting
B) Auto Stop and auto return
c) Custom Reporting
The Software controls the Set up and Extension as described below.
Set up of Test Bed:
Operator selects Test to be conducted, and S/W sets up the following
a) Sample Length, b) Speed of extension
Sample extension:
Once the sample is attached to the jaws and test is started, system peels the sample at pre-defined speed with cre (constant rate of extension once the sample ruptures the system stops stressing the sample. a real time graph of extension v/s strength is displayed in the software during the sample extension
Completely automatic operation from the host PC and extensive reporting capability.
Operations:
- Auto Sample Length / Speed of Extension set up as per type of sample
- Custom jaws ensure steady Extension without any slippage
- Real time graphs of Force v/s Extension
- Auto stop at sample rupture
Reporting:
Customized reporting capabilities with detailed and summary view for Lot testing
- The graph of Force v/s Elongation is plotted
- Force in KN (Y axis) vs. Elongation in m.m. (X axis)
- Force and Elongation @ Max and Break (Youngs Modulus in case of Thin Wire)
- Min, Max , Average values of Peel Strength
